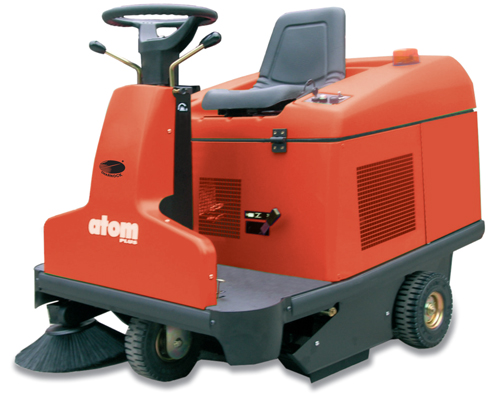

The ATOM Plus range is a series of sweepers with manual unload (Atom Plus) or high hydraulic unload (Atom SA). They were designed for those looking for more than a compact ride-on sweeper. More filtering capacity for working in dusty environments. More hopper capacity for increasing the hourly performance. More comfort for not tiring out the operator whilst unloading the dirt (Atom SA). More strength for long resistance.
OPTIONAL
On-board battery charger
4 x 6v-180ah (5h) batteries
Optional 2 side brushes
Filter and vibrator motor
| Model No |
Maximum Cleaning Width |
Hopper Capacity |
Hopper Unloading |
Filtering Surface |
Power/Engine | Batteries | Traction | Dust Filter Shaker |
Weight (Kg) |
Size |
|---|---|---|---|---|---|---|---|---|---|---|
| ATOM H PLUS | 1250 mm | 95 ltr | Manual | 6 m2/h |
Honda Petrol | – | Front Hydraulic | Electric | 262 Kgs | 1390 x 1010 x 1140 mm |
| ATOM E PLUS | 1250 mm | 95 ltr | Manual | 6 m2/h | Battery 24V | 2-12-115(5h) 4-6-180(5h) n.-V-A |
Rear Electronic | Electric | 225 Kgs | 1390 x 1010 x 1140 mm |
