Model
(U.M.)
Maximum Cleaning Capacity (sq m/hr) Maximum Cleaning Width 2nd Side brush (mm) Maximum Cleaning Width 3rd Side brush (mm) Maximum Cleaning Width 4th Side brush (mm) Engine (hp/kw) Hopper Capacity (ltr) Hopper Emptying

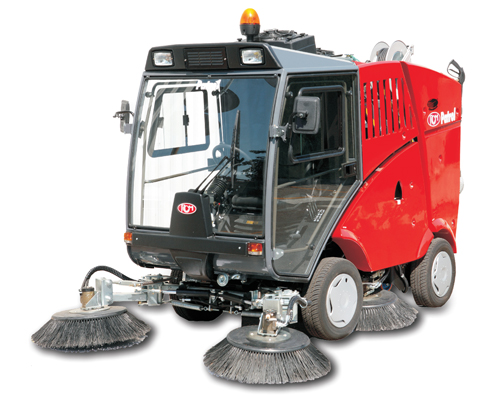

PATROL 23,000 1700 2000 2300 34-25 800 Hydraulic at 1,45mt

Water Tank Engine Type Cylinders (Hp/kW) Cooling (n.-V-A) Max. Speed Traction Dimensions (cm) Weight (Kgs)
250 Kubota 4 Water 4 Hydro static Rear 2970x1300x1990 1500
