Features:
- 4 poles electrical motor (1450 RPM) with thermal protection and water cooling.
- Three ceramic coated pistons.
- Built-in by-pass valve nickel plating brass linear pump head with high temperature water seals and bushing.
- Integrated elastic joint, for best pump coupling.
- Low voltage and delayed Total Stop.
- Suction and delivery S. S. valves.
- Vertical burner with high thermal efficiency steel coil.
- Temperature regulation gauge with high sensitive stainless steel sensor.
- Detergent built-in tank (3 lt).
- Auxiliary motor for burner air cooling and mechanical two ways fuel pump.
- Hose reel (optional).

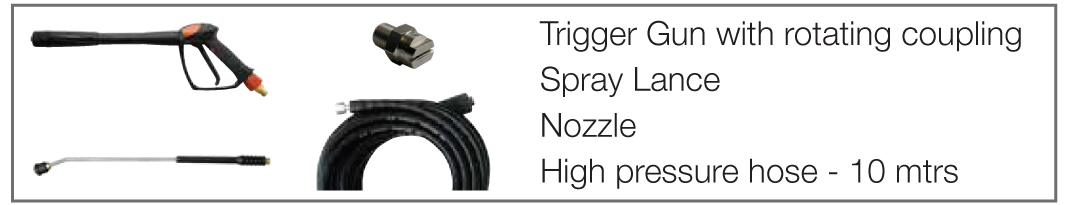

Standard Accessories
| Model No | Power | Motor Power | RPM | Pressure | Hose Length | Water Delivery Rate |
Max. Water Inlet/Outlet Temp | Power Cable | Weight | Size |
|---|---|---|---|---|---|---|---|---|---|---|
| CHW 200 | 400 V – 50 HZ | 7300 W | 1450 | 200 bar | 10 mtrs | 900 l/h | 40/140ºC | 5 mtrs | 129 Kgs | 940 x 650 x 900 mm |
